Professional Marine Fire-resistant Sealing Material Manufacturer

Taicang Jinmao New Materials

JINMAO NEW MATERIALS TECHNOLOGY CO., LTD.

Founded in 2014, Jinmao New Materials specializes in LNG cryogenic epoxy materials (JM-98 / JM-98L / JM-2601) as well as marine cable transit fire-resistant sealing materials. Our cryogenic materials withstand -196°C and hold type approvals from 9 major classification societies.

View Products → Get Quote
2014
Founded
2000万
Capital (RMB)
9
9 Major Class Societies
ABOUT US

Focused on Marine Transit
Fire-resistant Sealing Solutions

Located in Huangjing Town, Taicang City, Jiangsu Province — 70km from Shanghai Hongqiao Airport and 120km from Pudong Airport. We have established an independent R&D center and laboratory equipped with A60, A0, and F-class fire separation test furnaces, fully committed to the design, development, testing and verification of cable transit fire-resistant sealing materials.

🏭

Independent R&D

Suzhou-certified marine transit sealing material R&D center

🔥

A-60 Fire Certification

A60/A0/F-class fire separation test furnace, authoritative testing

🌍

Global Clients

Jiangnan, Hudong-Zhonghua, Dalian, Waigaoqiao shipyards

🏆

High-tech Enterprise

Recognized as Jiangsu High-tech Enterprise in 2020

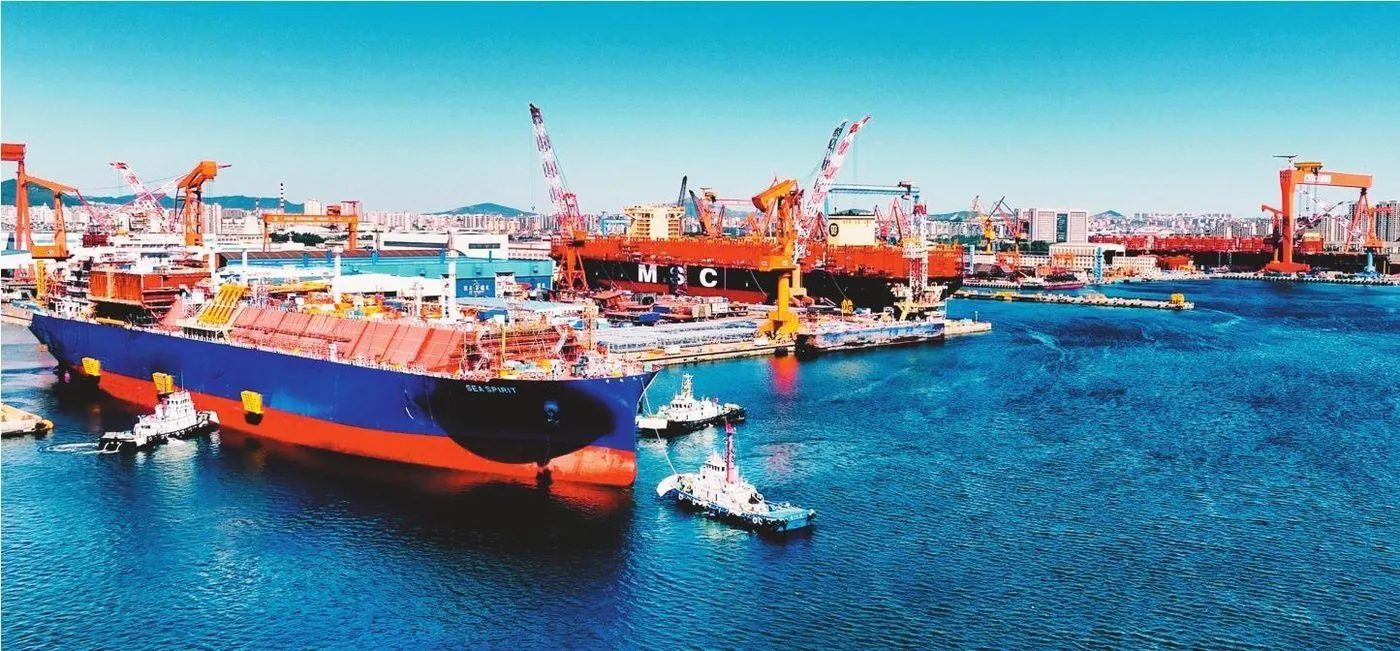

Shipbuilding

Core Qualifications

Company Taicang Jinmao New Materials Technology Co., Ltd.
English Name Taicang City Jinmao New Materials Technology Co., Ltd.
Founded 2014
Capital 20 million RMB
Address Huangjing Town, Taicang, Jiangsu
Product Cable Transit Devices
Standards SOLAS 1974 / IMO 2010 FTP Code Part 3
CCS DNV·GL ABS NK EC High-tech Enterprise
ADVANTAGES

Why Choose Jinmao

Industry-leading marine fire-resistant sealing solutions

Over a decade of expertise in marine fire-resistant sealing, trusted by leading shipyards worldwide

🔬

Independent R&D Center

Suzhou-certified R&D center with full fire test furnace capability, complete control from design to verification

🛡️

Global Classification Certification

Certified by CCS, DNV·GL, ABS, NK and more — globally recognized quality assurance

⚙️

Complete Product Range

From detachable pouring to sleeve, degaussing shielding, and inorganic types — full coverage for all marine transit scenarios

🤝

Trusted by Industry Leaders

Long-term partnerships with China's top shipyards: Jiangnan, Hudong-Zhonghua, Dalian, Waigaoqiao

PRODUCTS

Professional Marine Transit Sealing Products

PRODUCTS

Product Center

Comprehensive fire-resistant cable transit sealing solutions

Comprehensive fire-resistant cable transit sealing solutions across multiple fire ratings

LNG Low-temperature Materials

LNG Low-temperature Materials View dedicated LNG page →

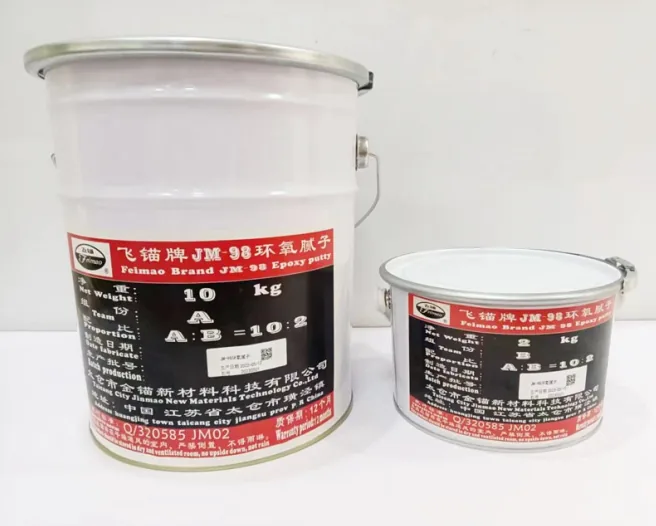

JM-98 低温环氧腻子
01

JM-98 Epoxy Putty

Low-temperature Epoxy Putty

JM-98 low-temperature epoxy putty for Type C independent LNG tank installation & load-bearing; poured into tank saddle, cures to structural support, service temp down to -196°C.

Low-temp Epoxy Load-bearing To -196°C LNG Tank Comp≥210 Type C
Learn more →

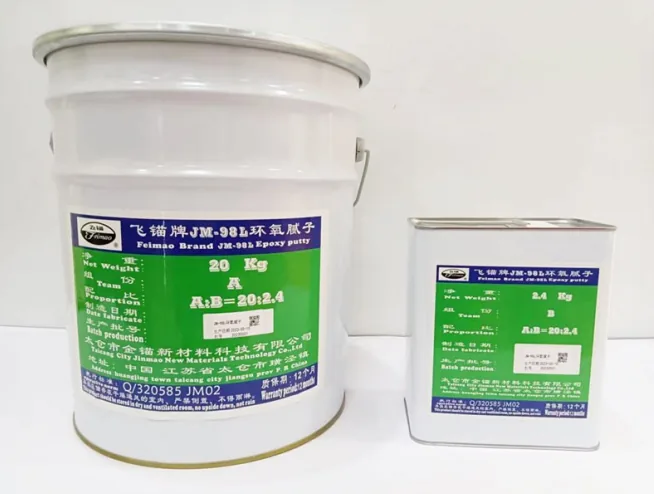

JM-98L 液体环氧树脂
02

JM-98L Liquid Epoxy

Liquid Epoxy Resin

JM-98L liquid epoxy resin, low viscosity & good fluidity, poured by gravity natural flow or pump pressure; mainly for Type-A & Type-B independent tank installation & load-bearing.

Liquid Epoxy Low Viscosity Pump Pouring Type A/B Tank Load-bearing
Learn more →

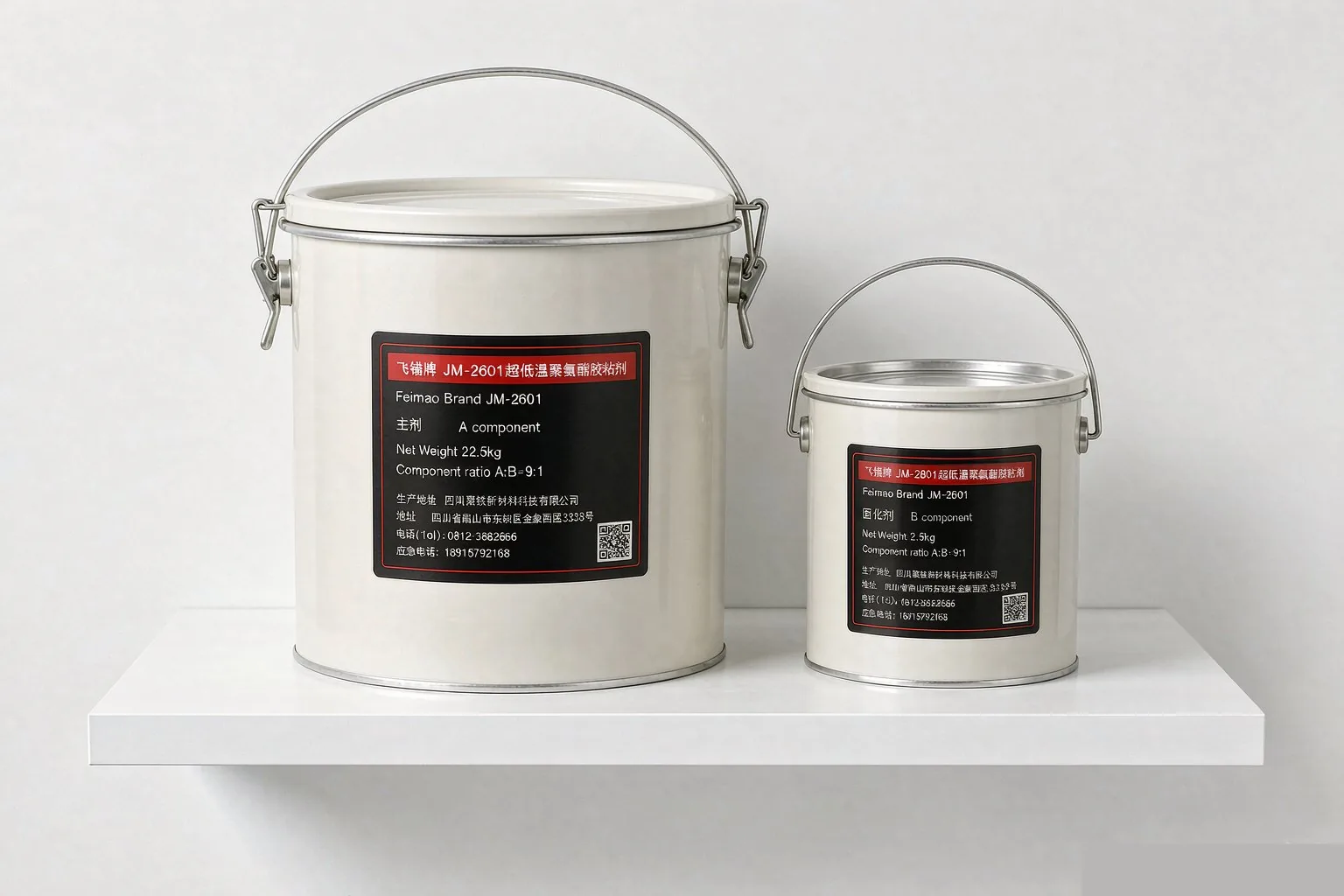

JM-2601 超低温聚氨酯胶粘剂
03

JM-2601 Ultra-low Temperature Adhesive

Ultra-low Temperature Adhesive

Two-component solvent-free flame-retardant PU; room-temperature cure, non-corrosive; for LNG-ship insulation-to-metal bonding.

Ultra-low Temp Adhesive Two-component Solvent-free FR LNG-ship Grade
Learn more →

Marine A60 Cable Transit Devices

Marine A60 Cable Transit Devices

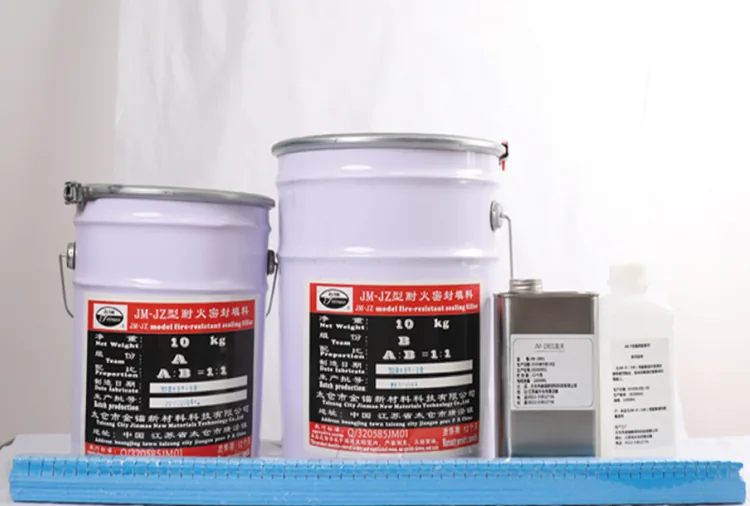

JM-JZ 可拆式浇注型电缆贯穿装置
01

JM-JZ Detachable Pouring Type

Detachable Pouring Type

Formed by integrating four independent systems: hydroxyl silicone rubber, vinyl silicone rubber, fluorosilicone rubber, and epoxy organosilicon. Features water & oil resistance, strong adhesion, and detachable cable modification capability.

A-60/A-0 Class Detachable Watertight 0.375MPa Non-toxic / Halogen-free OI ≥40% 10x Expansion

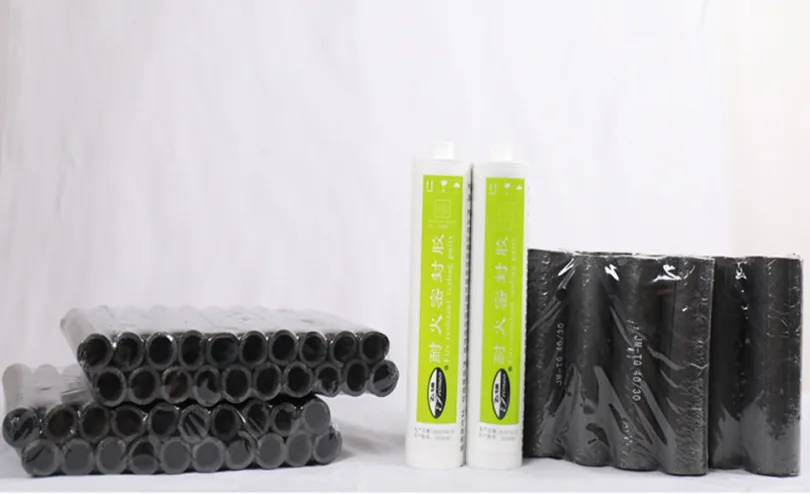

JM-TG 套管型电缆贯穿装置
02

JM-TG Sleeve Type

Sleeve Type

Sleeve-type cable transit device combining JM-TG fire-resistant sleeve, JM-FH fire band, and JM-J fire-resistant sealing compound. Stable fire performance and convenient installation.

A-60/A-0 Class Sleeve Type OI ≥45% Watertight 0.3MPa Airtight 0.25MPa Ceramic Wool Insulation

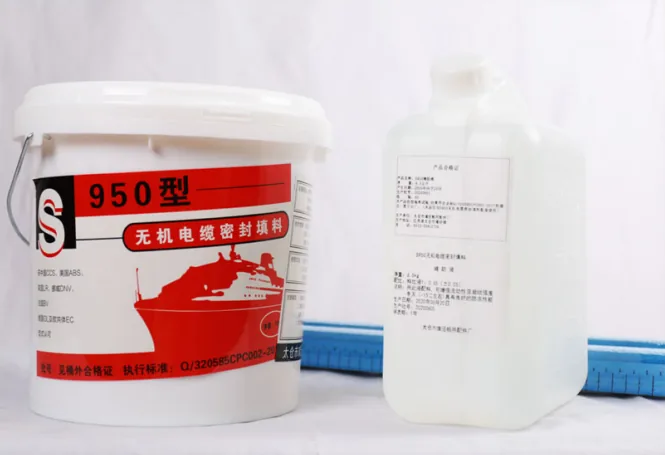

S950 无机电缆密封填料
03

S950 Inorganic Type

Inorganic Cable Penetration

S950 inorganic cable sealing filler combined with SW cable sealing expansion material. Inorganic composition with excellent high-temperature stability, suitable for various deck and bulkhead transit specifications.

Inorganic A-60/A-0 Class Expansion Material Multi-spec Watertight 0.3MPa
CERTIFICATIONS

Global 9 Major Classification Society Type Approvals

Type approval certificates from ABS, BV, CCS, DNV, KR, LR, NK, RINA & Russian Register — nine major classification societies

Holding type approval certificates from ABS, BV, CCS, DNV, KR, LR, NK, RINA & Russian Register — nine major classification societies

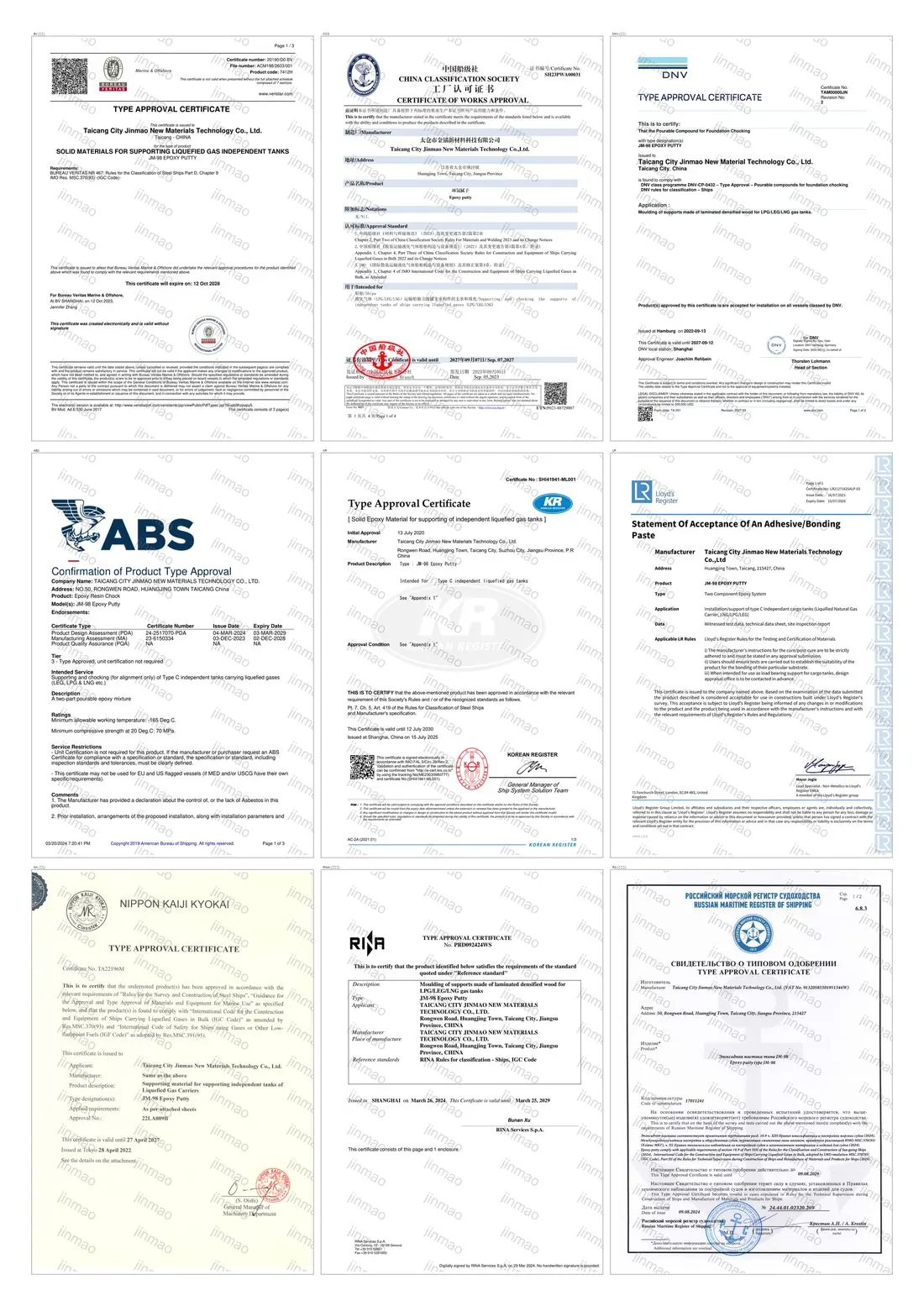

Nine Classification Society Type Approvals (preview) Click to view full resolution
SPECIFICATIONS

Product Specifications

Six products across marine A60 cable transit devices and LNG low-temperature materials, covering transit sealing & tank installation

Six products across marine A60 cable transit devices and LNG low-temperature materials, covering transit sealing & tank installation

Marine A60 Cable Transit Devices
LNG Low-Temperature Materials
📦
Detachable Pouring Type

Composed of rectangular/circular cable frame, JM-JZ fire-resistant filler, JM-D expansion material; room-temp cure elastomer, supports future removal & maintenance

A-60Max Fire Class
≤85mmMax Cable Dia.
0.375MPaWatertight
≥40%Oxygen Index
ModelSpec (mm)Fire ClassFill RatioCable Dia.Spacing
JM-JZ/A-60D (Deck)150×80×150 ~ 900×450×200A-60A-30A-15A-0≤40.08%≤85≥6mm
JM-JZ/A-60B (Bulkhead)Φ40×200 ~ Φ100×200A-60A-30A-15A-0≤36.89%≤42≥6mm
JM-JZ/A-0D (Deck)150×80×200 ~ 550×200×200A-0≤39.72%≤60≥6mm
JM-JZ/A-0B (Bulkhead)Φ40×200 ~ Φ100×200A-0≤36.89%≤42≥6mm

JM-JZ Technical Specs:

OI ≥40 | Density 1500±100 kg/m³ | JM-D Expansion 10x (≤10s) | pH ±7 non-corrosive | A:B=1:1 RT cure

🔧
Sleeve Type

Steel sleeve welded to bulkhead/deck, filled with JM-TG refractory casing + JM-J sealant; oval or circular section available

A-60最高耐火
≤85mm最大缆径
0.3MPa水密压力
≥45%氧指数
型号规格 (mm)耐火等级占据率缆径 (mm)间距
JM-TG/A-60D (甲板)65×65×140 ~ 950×450×140A-60A-30A-15A-00~43.83%≤85≥5mm
JM-TG/A-60B (舱壁)Φ32×140 ~ Φ273×140A-60A-30A-15A-00~42.36%≤30≥5mm
JM-TG/A-0D (甲板)65×65×140 ~ 950×450×140A-00~43.83%≤85≥5mm
JM-TG/A-0B (舱壁)Φ32×140 ~ Φ273×140A-00~42.36%≤30≥5mm

JM-TG 技术指标：

氧指数 JM-TG≥45% | JM-FH≥45% | JM-J≥50% | 隔热材料 陶瓷棉板 170kg/m³ (20+20)mm | 套管长度 200mm 厚度 8mm

🛡
S950 无机型

S950型无机电缆密封填料 + SW型膨胀堵料，焊接连接，无需隔热材料即可达 A-0 级

A-60最高耐火
0.3MPa水密
0.25MPa气密
Q235框体材质
型号规格 (mm)耐火等级占据率缆径 (mm)间距
S950/A60T (甲板)65×65×140 ~ 950×450×140A-60A-30A-15A-00~43.83%≤85≥5mm
S950/A60K (舱壁)Φ32×140 ~ Φ273×140A-60A-30A-15A-00~42.36%≤30≥5mm
S950/A0T (甲板)65×65×140 ~ 950×450×140A-0≤41.46%≤20≥5mm
S950/A0K (舱壁)Φ32×140 ~ Φ273×140A-00~32.81%≤8.6≥5mm

S950 技术指标：

水密 0.3MPa 无泄漏 | 气密 0.25MPa 无泄漏 | 连接方式 焊接 | 电缆框 Q235 船体钢 ≥3mm | A-0级无需隔热材料

❄
JM-98 Epoxy Putty

Low-temperature epoxy putty for Type C independent LNG tank installation & load-bearing; poured into saddle, cures to structural support, service temp down to -196°C.

≥210Comp. Strength(-195℃) N/mm²
≥70Shear Strength(-195℃) N/mm²
≤0.6696Thermal Cond. W/m·K
1.55Mixed Density g/cm³
Temp.Comp. Strength (N/mm²)Shear Strength (N/mm²)
20℃≥100≥42
-50℃≥150≥45
-110℃≥190≥60
-195℃≥210≥70

JM-98 Technical Specs:

Low-temp epoxy putty | For C independent tank load-bearing | Optimal thickness 25~40mm (max ≤50mm) | Cure 25℃ ≥6d Barcol ≥30 | Per GB/T1448, GB/T3854

💧
JM-98L Liquid Epoxy Resin

Liquid-type epoxy resin with low viscosity and good fluidity, pourable by gravity flow or pumping pressure; mainly for load-bearing installation of independent Type-A & Type-B tanks.

≥300Comp. Strength(-195℃) N/mm²
≥85Shear Strength(-195℃) N/mm²
≤0.5Thermal Cond. W/m·K
1.60Mixed Density g/cm³
Temp.Comp. Strength (N/mm²)Shear Strength (N/mm²)
20℃≥110≥50
-50℃≥190≥63
-110℃≥260≥78
-195℃≥300≥85

JM-98L Technical Specs:

Liquid epoxy resin | Low viscosity & good fluidity, gravity/pump pouring | For Type-A/B independent tank installation | Mixed density 1.60±0.05 g/cm³ | Barcol ≥30 | Per GB/T533, GB/T1448, GB/T3854

❄
JM-2601 Ultra-Low Temperature Adhesive

Two-component solvent-free flame-retardant polyurethane adhesive; cures at room temperature without by-products or corrosion; mainly for bonding between foam insulation materials of LNG carriers and between foam and metal.

-196~150℃Temp. Range
≥28%Oxygen Index
A:B=9:1Mix Ratio
≤80minPot Life(23℃)
ItemSpecification
Appearance (Comp. A)White or pale yellow paste
Appearance (Comp. B)Brownish-red liquid
Mixing Ratio (weight)A : B = 9 : 1
Mixing Ratio (volume)A : B = 7.3 : 1
Pot Life (23±2°C)≤ 80 min
Surface Dry (23±2°C)≥ 6 h
Full Cure (23±2°C)≥ 7 天
Density (Mixed)(1.5 ± 0.1) g/ml
Shear Strength (23±2°C)≥ 2 MPa
Temp. Range-196℃ ~ 150℃

JM-2601 Technical Specs:

Two-component solvent-free flame-retardant PU | RT cure, no by-products, non-corrosive | For LNG carrier foam insulation & foam-to-metal bonding | OI ≥28% | Meets marine flame-retardant requirements

PARTNERS

Trusted Partners

Long-term partnerships with China's leading shipbuilding enterprises

Long-term partnerships with China's leading shipbuilding enterprises

Jiangnan Shipyard
Hudong-Zhonghua
Dalian Shipbuilding
Waigaoqiao Shipbuilding
CSSC Guangzhou
CIMC Pacific
OUR VISION

From Marine Engineering to Future Energy

JINMAO excels in marine sealing and follows the global shift to green shipping — LNG carriers, offshore wind platforms, and new-energy vessels all rely on our products.
